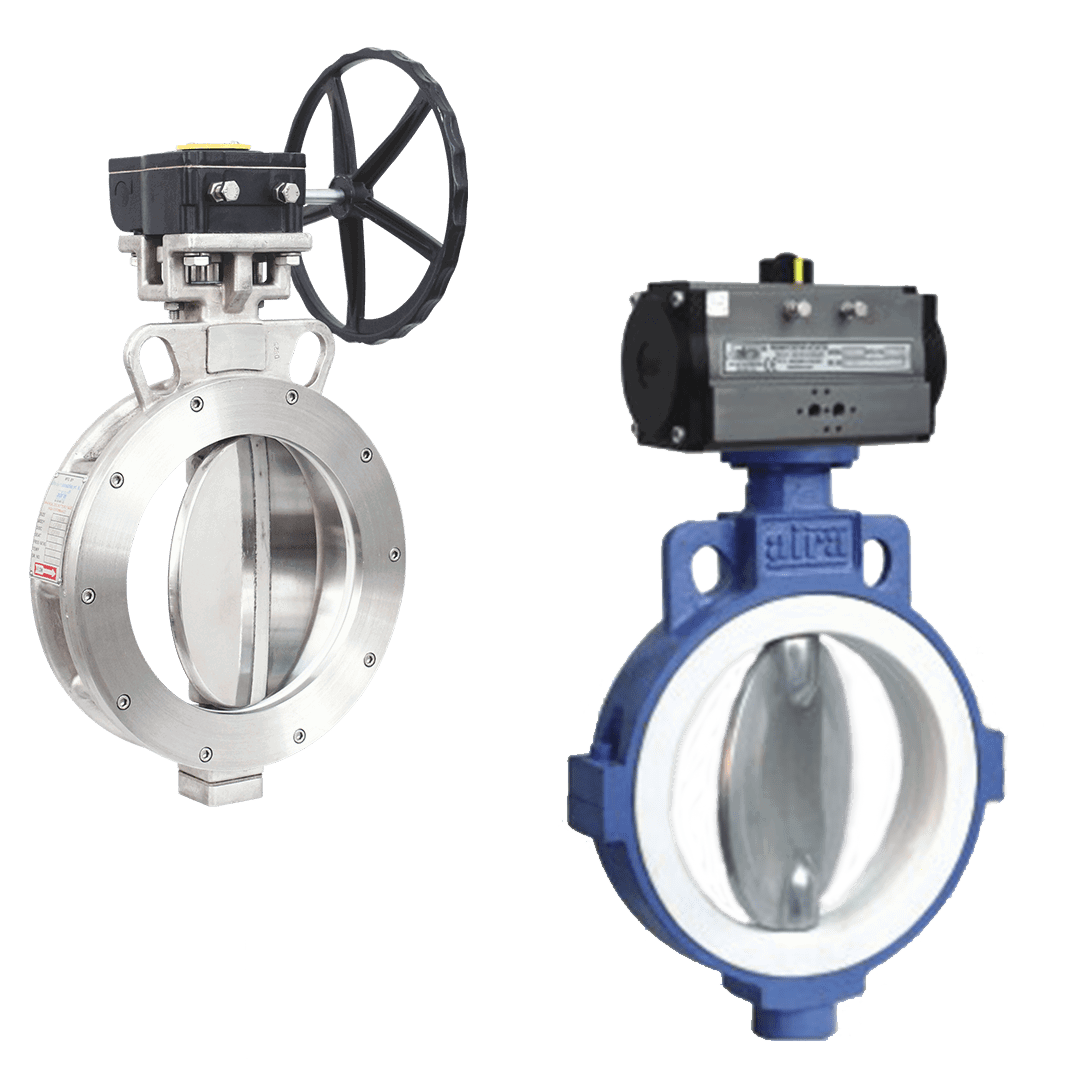

Butterfly valves are rotational movement valves with a quarter-turn revolution that are utilized to stop, control, and begin the stream. Butterfly valves are not difficult to open and close. A 90° revolution of the handle closes or opens the valve. Huge Butterfly valves are generally equipped with a gearbox, which interfaces the handwheel to the stem through gears. This improves the activity of the valve, even though at the consumption of speed.

Sorts of Butterfly Valves

There are 3 sorts of Butterfly valves and they are: -

Zero Offset Butterfly Valves

A zero offset butterfly valve's stem goes through the centerline of the circle, which would be engaged in the seat; everything is primarily engaged inside the valve body. At the point when the valve is shut, the valve body, seat, and plate are all untruth concentrically. The circle pivots on its focal hub, considering a 3600 turn. The stream is partitioned into equal parts on each side of the plate when it is completely opened, and the circle is currently lined up with the stream. Since the seat covers the valve body, the streaming media doesn't come into contact with it.

Zero offset butterfly valves have versatile delicate seats since they depend on the delicate seat's adaptability and are misshapen during fixing. Accordingly, the circle edges slide onto the seat, bringing about complete contact between them during the activity. This abbreviates the help life of the valve. Since the plan requires the utilization of a polymeric or elastomeric material for the seat, bringing down tension and temperature ratings is restricted. Butterfly valves with zero offset are utilized in fluid and gas pipelines with tension and temperature evaluations of 250 psi and 4000F, separately.

Double Offset Butterfly Valves

In twofold balanced butterfly valves, the stem pivot is counterbalanced behind the seat and body centerlines (first offset), The stem hub is then created some distance from the valve's upward centerline (second offset) (second offset). At the point when the circle is opened, the seat is lifted away from the seal, decreasing contact during the first and last 10 levels of valve opening and shutting. Thus, the valve works all the more easily, has a superior fixing capacity, and has a more extended help life than a zero offset butterfly valve.

Twofold offset butterfly valves, similar to zero offset butterfly valves, have a delicate seat. They come in moderate tension and temperature appraisals and can endure higher tensions and temperatures than zero offset butterfly valves in fluid and gas pipelines.

Twofold offset butterfly valves are normally tracked down in water treatment, wastewater treatment, HVAC, and fire security frameworks (e.g., fire sprinklers). How much delicate seat material is diminished for expanded temperature obstruction by supporting it with a layer of metal.

Triple Offset Butterfly Valves

Notwithstanding the initial two counterbalances, triple offset butterfly valves have a rakish balanced in the body fixing cone pivot (third offset). This is achieved by joining the seat's right-calculated cone-shaped profile with a matching profile at the circle edge. This offset disposes of contact between the seat and the plate during valve opening and shutting, consequently dispensing with rubbing. Contact happens just when the butterfly valve is completely shut; this likewise goes about as a mechanical stop to keep the plate from pivoting any further.

Metal seats are expected for the plan of triple offset butterfly valves. Metal seats, which are harder and more inflexible than delicate seats, can endure high temperatures and liquid tensions, lessening valve wear. The seats give fixing, guaranteeing that no liquid getaways from the valve. Triple offset butterfly valves last longer than zero offset and twofold offset butterfly valves.

Triple offset butterfly valves are great for managing high-pressure and superheated steam, high-temperature fluids and gases, and destructive synthetic compounds that delicate seat butterfly valves can't deal with. These valves are usually found in power plants (for instance, here and there kettle valves), oil and gas handling, compound assembling, mash, and paper fabricating, and seaward pipelines.

Aira Euro Automation is a leading butterfly valve manufacturer in Jordan. We offer various industrial valves like ball valves, butterfly valves, plug valves, safety valves, pressure reducing valves, drum valves, control valves, and many more products.
