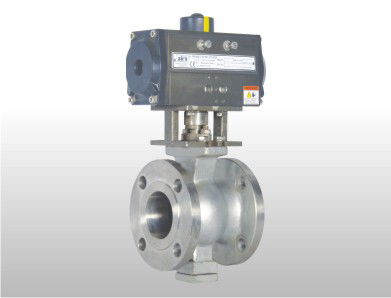

v notch ball valve is a 90-degree rotational movement valve that utilizes a metal or earthenware ball with an opening through its middle to stop or begin a liquid stream. The ball, displayed beneath in Figure 1, opens and closes to permit liquid course through the ball valve. At the point when the valve handle or stem is gone to open the valve, the ball turns to where the opening in the ball is corresponding with the valve body gulf and outlet. At the point when the valve is closed, the ball is turned so the ball's opening is opposite to the channel and outlet of the valve body, and the stream is halted.

Most ball valve actuators are of the speedy acting sort, which requires a 90° turn of the valve handle or stem to work the valve. Other ball valve actuators are planetary stuff worked manual, electrically worked engines, or pneumatic cylinder type. All actuators give the essential working power to open and close valves.

Ball Valve Advantages

A ball valve is regularly the most affordable of any modern valve set up and has low support costs. Notwithstanding fast, quarter-turn on-off activity, ball valves are minimized, require no oil, and give tight fixing with low force.

Ball Valve Disadvantages

Traditional modern ball valves have somewhat helpless choking attributes (with the exception of when utilizing a portrayed ball, as displayed previously). A standard ball valve when in choking position will fizzle due to view of the impingement of high-speed stream and the erosive impact on the somewhat uncovered seat.

Ball Valve Port Patterns

Ball valves are accessible in the venturi, decreased, and full port example. The full port example has a ton of fun with a drag equivalent to within breadth of the line.

Ball Valve Materials

Balls are normally metallic in metallic bodies with trim (seats) delivered from "delicate" seats alluding to the elastomeric materials utilized like PTFE (100 percent Virgin Polytetrafluoroethylene), RTFE (Reinforced Teflon®), TFM, CTFE, Polychlorotrifluoroethene, Polyether Ether Ketone, and UHMWPE. Care should be utilized in the determination of the seat material to guarantee that it is viable with the materials being taken care of by the valve. Ball valve bodies may likewise be made of different plastic materials for destructive applications.

Ball Valve Stem Design

The stem in a ball valve isn't affixed to the ball. It regularly has a rectangular piece at the ball end which squeezes into an opening cut into the ball. The growth grants pivot of the ball as the stem is turned.

Ball Valve Bonnet Design

A hood cap secures to the body, which holds the stem get together and ball set up. Change of the hat cap grants pressure of the pressing, which supplies the stem seal. Pressing for ball valve stems is ordinarily in the setup of pass-on framed pressing rings typically of TFE, TFE-filled, or TFE-impregnated material. Some ball valve stems are fixed through O-rings rather than pressing.

Ball Valve Position

A few ball valves are outfitted with stops that grant just 90° pivot. Others don't have pauses and might be turned 360°. With or without stops, a 90° revolution is everything necessary for shutting or opening a ball valve.

The handle shows the valve ball position. At the point when the handle lies along with the hub of the valve, the valve is open. At the point when the handle lies 90° across the pivot of the valve, the valve is shut. Some ball valve stems have a depression cut in the top essence of the stem that shows the flow path through the ball. Perception of the score position shows the place of the port through the ball. This component is especially worthwhile on multiport ball valves.
